Specification Range
& Status on Delivery

Grade

Quantity(Tons)	1 - 6000	>6000
Est. Time(days)	30	To be negotiated

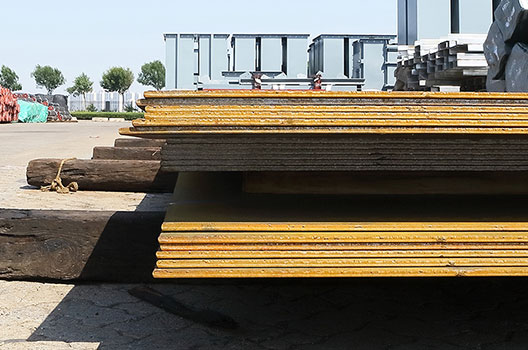

1. Specification RangePlate

Thickness:1mm-200mm

Width:1000mm-4000mm

Length:1000mm-15000mm

Special Use: Shipbuilding,Hull Structure,Wharf,Offshore Set-up,etc

Supply Ability: 6000 Ton/Tons per Month

Surface Treatment: Coated,Painted,Oiled or as Customers' Request

2. MOQ: 1 Ton

According to the performance and the requirements from clients, the status on delivery of steel plate can be hot rolled ^controlled rolling, normalizing, annealed tempering, normalizing + tempering, hardening + tempering, etc.

3. Packing: Standard Sea-worthy Packing or as Customers' Request

Port: Shanghai,Tianjin,Qingdao or as Required

4.Application

Shipping,Lighthouse,Bridge,Deck,etc

Lead Time:

Quantity(Tons)	1 - 6000	>6000
Est. Time(days)	30	To be negotiated

Product form

1.Grade and Chemical Composition(%)

Grade	C%≤	Mn%	Si%	P%≤	S%≤	Al%	Nb%	V%
A	0.22	≥0.25C	0.10~0.35	0.04	0.04	/	/	/
B	0.21	0.60~1.00	0.10~0.35	0.04	0.04	/	/	/
C	0.21	0.60~1.00	0.10~0.35	0.04	0.04	≥0.015	/	/
D	0.18	0.70~1.20	0.10~0.35	0.04	0.04	≥0.015	/	/
A32 D32 E32	0.18	0.70~1.60 0.90~1.60 0.90~1.60	0.10~0.50	0.04	0.04	≥0.015	/	/
A36 D36 E36	0.18	0.70~1.60 0.90~1.60 0.90~1.60	0.10~0.50	0.04	0.04	≥0.015	0.015~0.050	0.030~0.10

2.Mechanical Properties

Grade	Thickness (mm)	Yieldpoint(Mpa)≥	Tensile Strength (Mpa)	Elongation (%)≥	V-impact test			Cold bend test
					Temperature(℃)	Average AKVA kv/J		b=2a 180º	b=5a 120º
						Iengthways	crosswise
						≥
A	≤50	235	400~490	22	/	/	/	d=2a	/
B					0	27	20	/	d=3a
D					-10
E					-40
A32	≤50	315	440~590	22	0	31	22	/	d=3a
D32					-20
E32					-40
A36	≤50	355	440~590	21	0	34	24	/	d=3a
D36					-20
E36					-40

3.Available Specification

Variety		Thickness (mm)	Width (mm)	Length/inner diameter(mm)
Shipbuilding plate	Cutting edges	6~200	1500~3000	1510~2010
	Non-cutting edges		1300~3000
Shipbuilding coil	Cutting edges	1.2~19	1500~2000	760+20~760-70
	Non-cutting edges		1510~2010

4.Theoretical weight

Thickness (mm)	Theoretical weight		Thickness(mm)	Theoretical weight
Thickness (mm)	Kg/ft2	Kg/m2	Thickness(mm)	Kg/ft2	Kg/m2
6	4.376	47.1	25	18.962	196.25
7	5.105	54.95	26	20.42	204.1
8	5.834	62.8	28	21.879	219.8
10	7.293	78.5	30	23.337	235.5
11	8.751	86.35	32	25.525	251.2
12	10.21	94.2	34	26.254	266.9
14	10.939	109.9	35	27.713	274.75
16	11.669	125.6	40	29.172	314
18	125.6	141.3	45	32.818	353.25
20	14.586	157	48	35.006	376.8
22	16.044	172.7	50	36.464	392.5
24	18.232	188.4	/	/	/
